One-story plan of a frame house with a basement and a garage

Page has been viewed 397 times

PM-254363-1-3

House Plan PM-254363-1-3

Mirror reverse

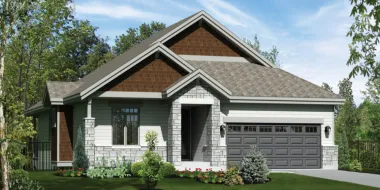

The classic façade style of this single-story plan home contrasts with the rear of the home, which has grown to 2 stories at once, thanks to the basement with access. The dimensions of this home are 43'40" by 56'80", giving 1,612 sq. ft. of living space and the addition adds a 430 sq. ft. 2 car garage. Huge windows and a balcony in the back give the house an elegant appearance. The ceiling height in this home is 9'. This home has 3 bedrooms, including the master bedroom with a walk-in closet and large bathroom. From the master bedroom, you can access the balcony. Enter the home from the front porch into a small foyer with a built-in coat closet. To the right is the utility room combined with the laundry room, where you can enter the garage. In the center of the large hallway are the stairs to the basement. The living room with fireplace, dining room, and kitchen with a kitchen island and pantry area at the back of the house. From the dining room and living room, you can access the terrace at the back of the house.
Siding, stone, wood chips are used for finishing the facade.
This house has a gable, Dutch roof, for the construction of which trusses are used. The slope angle of the main roof is 30 °, and the angle of slope of the adjoining roofs is 30 °. The height of the upper point of the roof from the foundation - 26'.
The main features of the layout of this cottage are kitchen-living room, laundry room on the 1st floor, fireplace, economy class, foyer,
The kitchen features a pantry, kitchen island.
The master bedroom has the following amenities: the master bedroom is located away from the other bedrooms.
Spend more time outdoors in all weathers because the house has a front porch, back porch.

Total Square: 150.6 sq.m

Width: 12.9 m

Depth: 17.2 m

Floors: 1

Bedrooms: 3

Bathrooms: 2

Garage Bays: 2

Фото 2. Проект HP-12543631

Convert Feet and inches to meters and vice versa

ft   in= m

Only plan: $200 USD.

Additional Options: + $600 USD.
+ $400 USD.
+ $400 USD.
*Small changes in plan included.
Total:

HOUSE PLAN INFORMATION

Quantity

Floor
1
Bedroom
3
Bath
2
Cars
2

Dimensions

Total heating area
150.6 m2
1st floor square
150.6 m2
House width
12.9 m
House depth
17.2 m
Ridge Height
7.8 m
1st Floor ceiling height
2.7 m
Building construction type
Wood frame house plans



Foundation



Walls

Exterior wall thickness
2x6
Wall insulation
3.29 Wt(m2 h)
Facade cladding
  • stone
  • horizontal siding



Main roof pitch
30°
Secondary roof pitch
30°
Roof type
a gable roofa dutch roof



Rafters
  • wood trusses



Living room feature
  • fireplace
  • open layout



Kitchen feature
  • kitchen island
  • pantry



Bedroom Feature
  • walk-in closet
  • outdoor exit
  • bath and shower
  • split bedrooms



Garage type
House plans with built-in garageTwo car garage house plans



Garage Location
front
Garage area
40.3 m2
Outdoor living
covered entry porchrear veranda



Style
EuropeanScandinavian



Suitable for
a slopping lot



Features

economical to build
